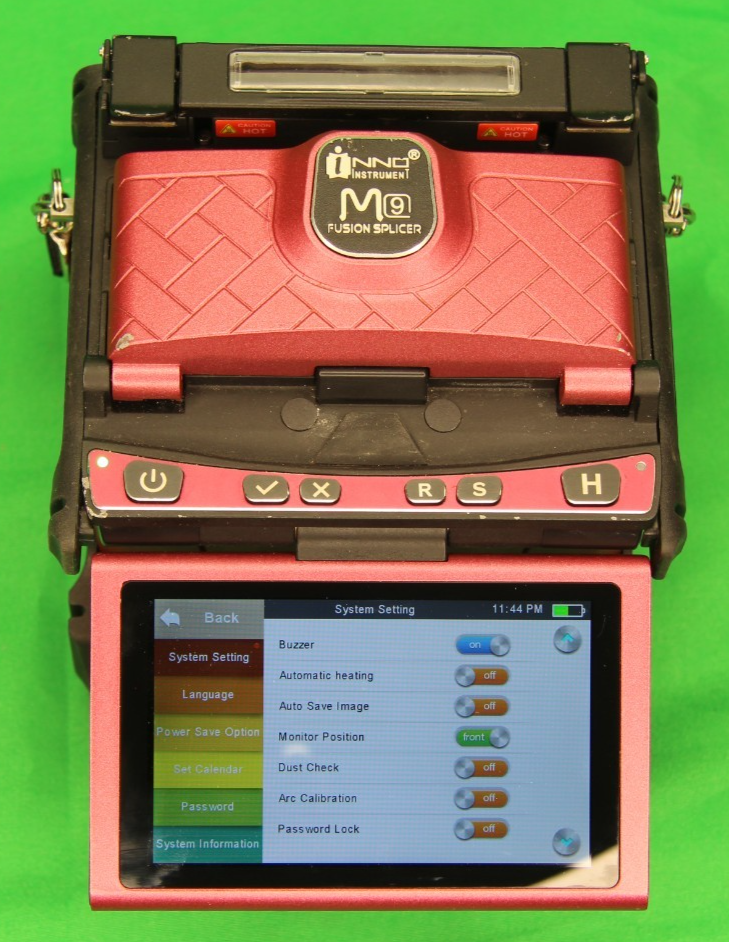

Inno Instrument M9 Arc Fusion Splicer

Tested.
This item has been function tested by CJR Electronics and is in a used condition, it has some marks and scratches but is in a working condition (please check pictures carefully)

M9, a core-alignment splicer with ultra-portable design, is one of the most efficient fusion splicers in the market. This compact and sophisticated fusion splicer inherits many remarkable functionalities from sister products. M9’s 4.3 inch high-resolution color LCD touch screen with user-friendly intuitive GUI(Graphic User Interface) offers large and clear fiber images to users. By double-tapping the screen, users can enlarge / reduce the screen up to 400X and check the optical fiber with clear images. With M9’s Adjustable strap hanger users can customize their working station. M9 is genuinely world’s most efficient hand-held fusion splicer in the telecommunications industry.

Splicing Technology: Core Alignment Splicing Method
Splicing Time: 7 seconds (quick mode) / 9 seconds (SM auto mode)
Heating Time: 13 seconds (45mm, slim 60mm), 15 seconds (60mm)
Typical Loss: 0.02dB(SM) / 0.01dB(MM) / 0.04dB(DS) / 0.04dB(NZDS) / 0.02dB(G.657) / 0.04dB(DS) / 0.04dB(NZDS) / 0.02dB(G.657)
Dimensions: Size (HWD) H: 136mm W: 144mm D: 125mm
Weight: 1.67kg (including battery) / 1.43kg (without battery)
