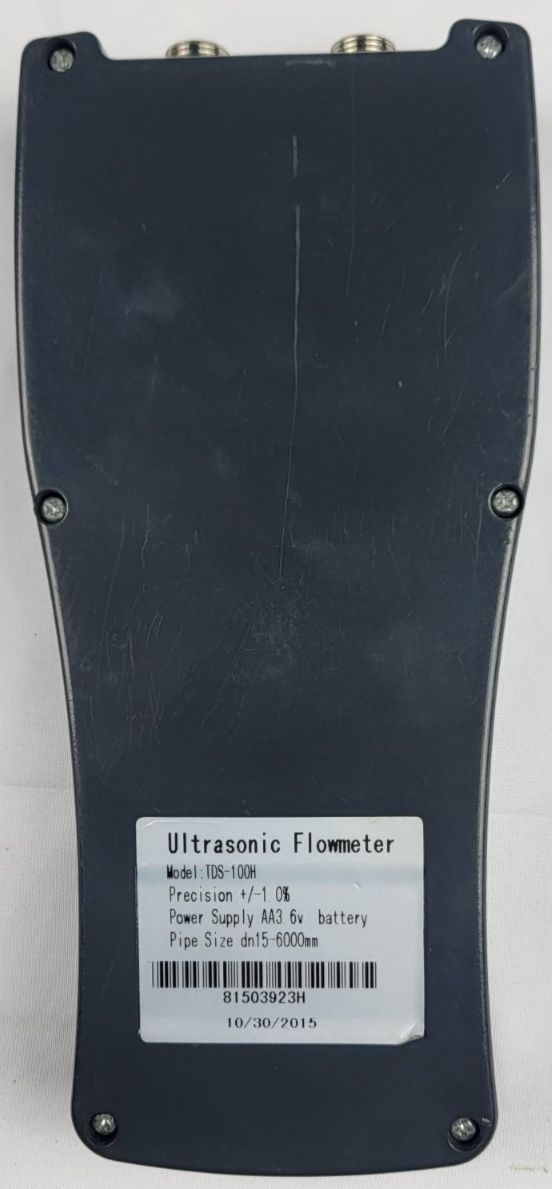

TDS-100H Handheld Ultrasonic Flow Meter

This item has been function tested by CJR Electronics and is in a used condition, it has some marks and scratches but is in working condition (please check pictures carefully)

The TDS-100H handheld ultrasonic flowmeter is an external clamp and time difference ultrasonic liquid flowmeter that uses low voltage multi-pulse balanced transmit and receive technology.
4 lines of characters display the instantaneous flow rate, cumulative flow rate, signal status, etc.
Built-in data recorder can record date, accumulated flow, signal status, working time, etc.
The standard data interface RS232 is used for networked detection or export of recorded data.
OCT outputs positive, negative, static cumulative pulse signals and frequency signals (1-9999KHZ).

Features:
- Built-in charging circuit and Ni-MH rechargeable battery that can work continuously for ten hours
- Four lines of Chinese characters display flow rate, instantaneous flow, cumulative flow, signal status, etc. on the same screen
- The linearity is better than 1%.
- Diameter of measuring pipe: 15mm~6000mm
- Built-in data recorder can record date, cumulative flow, signal status, working time and etc.
- OCT outputs positive, negative, static cumulative pulse signal and frequency signal (1~9999HZ)
- RS232 standard data communication interface, used for exporting recorded data, online networking detection, etc
- Small measuring tube (can calibrate the water meter online, with an accuracy of+/- 0.5%)
- Mini size: 100 x 66 x 20mm; weight: 0.5kg
- Non-contact measurement: the magnetic ultrasonic flow meter sensor is adsorbed on the outer wall of the pipeline, which can complete the flow measurement with a large measurement range.
- Different types of sensors can be used to measure the flow of DN20 ~ DN1500 pipes. If larger pipe diameters need to be measured, please use this series of large-diameter ultrasonic flow meter.
- Large screen LCD display: it can display cumulative flow, instantaneous flow, flow rate, working status, etc. at the same time.
- Built-in data recorder: Built-in data recorder, with a space of 24k bytes, can store 2000 lines of measurement data.

Specification:
- Size: 100 x 66 x 20mm
- Weight: 516g
- Measuring medium: water, sea water, industrial sewage, acid-base liquid, various oils and other liquids that can transmit sound waves
- Flow rate range: 0 ~ ±32m/S
- Measuring precision: ±1%, velocity >0.2m/S
- Pipe section size: 15mm ~ 6000mm
